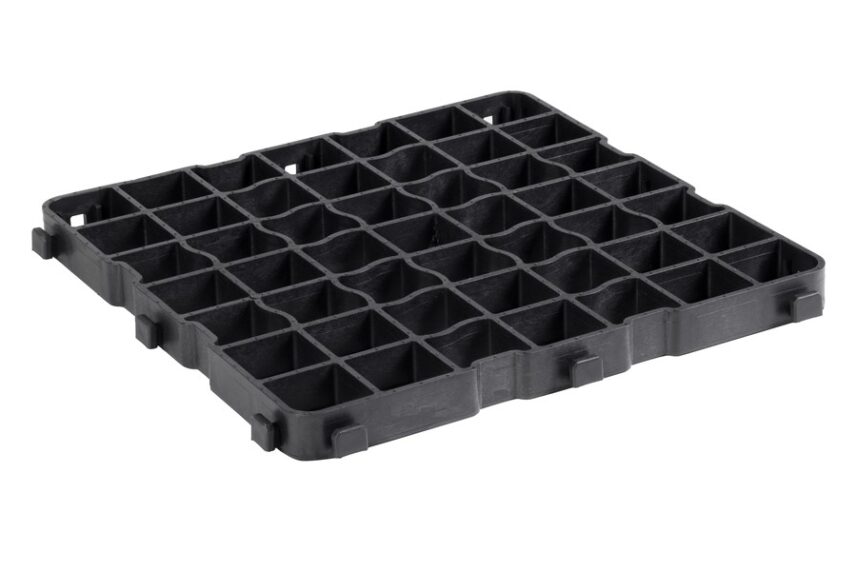

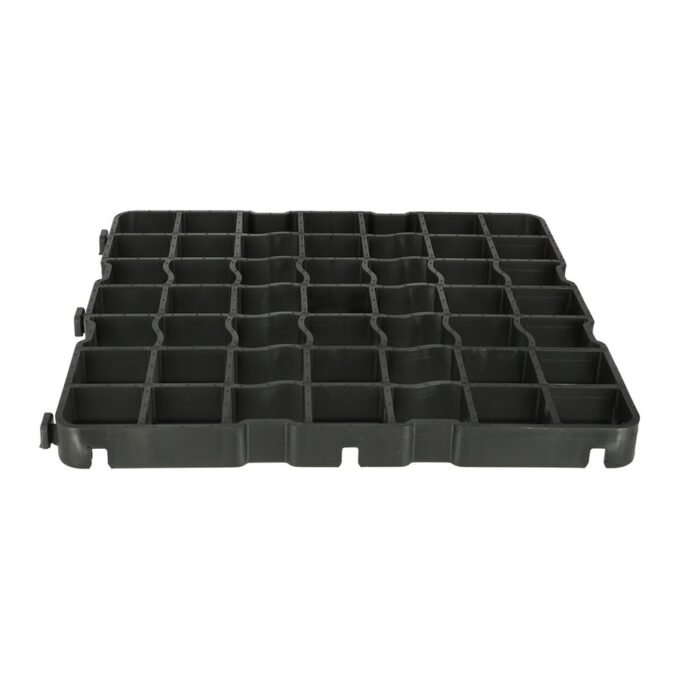

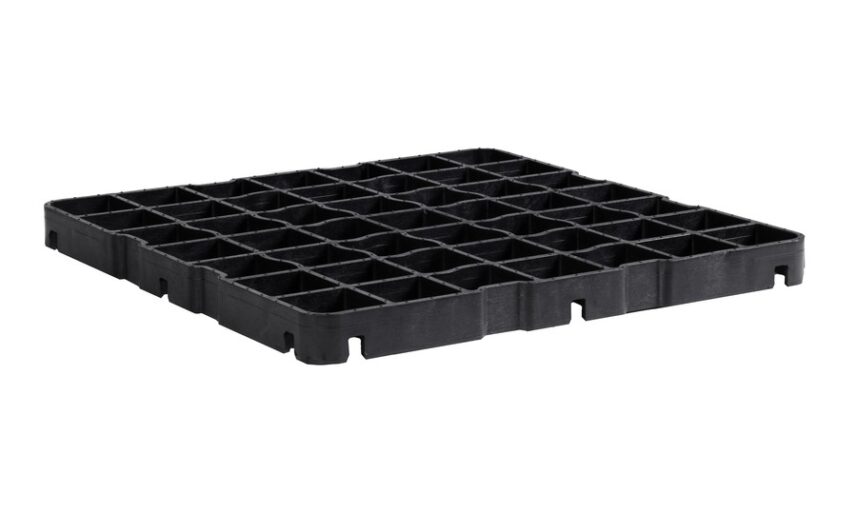

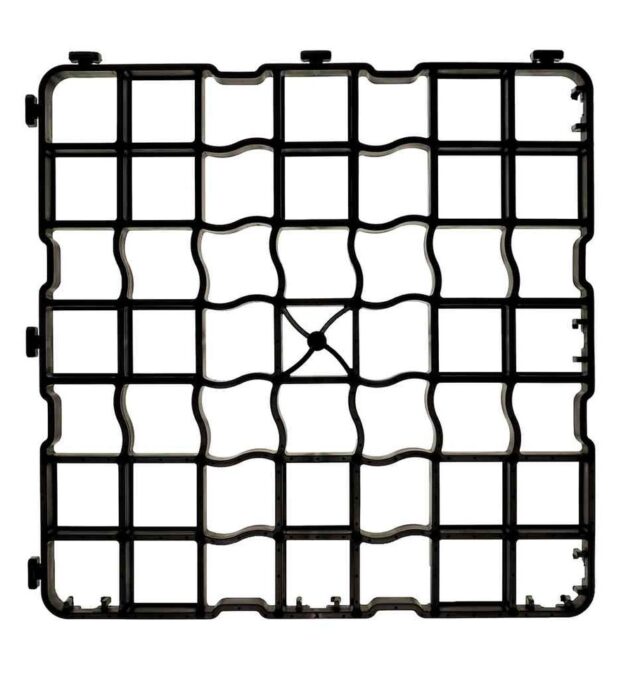

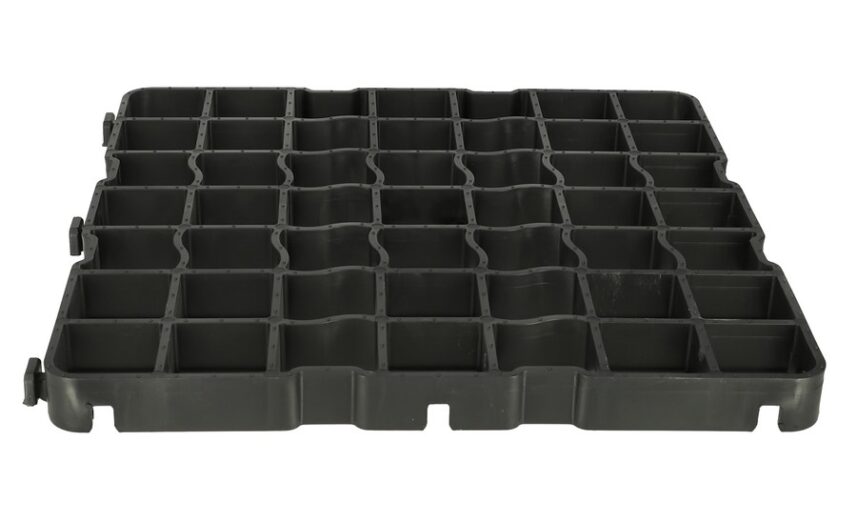

ECO-GRID N40 PRO
Professional application
The PRO series Eco-grid, designed for industrial applications in parking lots, roads, and driveways, is dedicated to demanding areas. It is resistant to heavy loads and intensive use.
86%
Biologically active surface
500 t/m²
Load Capacity
- Height 40 mm
- Dimension 50cm/50cm
- Color Black
- Weight 1.8 kg
Technical parameters
Height
40mm
Dimension
50cm/50cm
Weight
1.8 kg
Color
Black
Outer wall thickness
6 mm
Inner wall thickness
6 mm
Number of geogrid clusters
49
Cluster dimensions
64 mm/64 mm
Number of pieces per m2
4
Weight per 1m2
7.2 kg
Material
PP/PE
Raw Material
100% Recycled
Dimensional stability
± 3%
Compressive strength, minimum
500 t/m²
Permissible axle load, minimum
>350kN/axle
Biologically active surface
86%
Runoff coefficient
0,11-0,20
Application for fire access roads
YES
Product intended for
General Information
The Eco-grid N40 PRO is constructed from a regular arrangement of cells forming a rigid skeleton that stabilizes the ground, characterized by thick walls with enhanced resistance.
Individual Eco-grid clusters can be filled with mineral aggregate or a layer of fertile soil for grass seeding, allowing for a stable and biologically active green surface.
The modules connect using built-in hooks and grooves, which, once snapped together, create a uniform, cooperative surface resistant to heavy mechanical loads.
Thanks to its reinforced construction, the product is designed for professional applications, such as the construction of fire access roads, maneuvering areas, and truck parking lots.
This solution is effective wherever maximum durability is required while maintaining natural water retention and protection against rut formation.
The system is fully compatible with NATAN PLAST plastic parking markers, enabling precise demarcation of parking spaces and traffic lanes.
Product Packaging
- Pallet size 120cm/100cm
- Pallet height 2.1m
- Pallet weight 450 kg
- Number of pieces per pallet 240
- Number of m2 per pallet 60
- Special packaging Possibility of special packaging up to a maximum pallet height of 2.6m
Documents and Certificates
Technical Data Sheet
Download
National Declaration of Performance
Download
EPD Certificate
Download
REACH Declaration
Installation Instructions for stone infill
Installation Instructions for grass seeding
