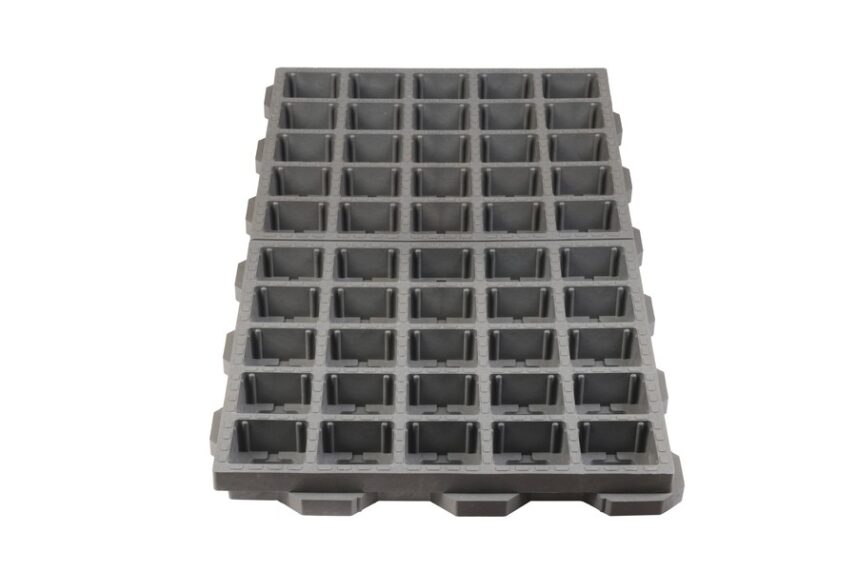

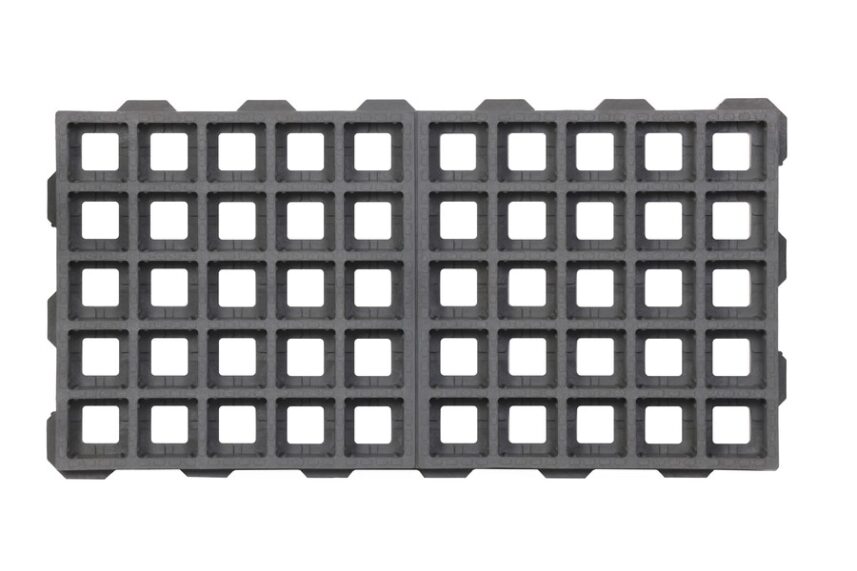

HYDROGRAVEL PRO GREY
Professional application
A geogrid dedicated to the most demanding applications in industrial construction, road infrastructure, and areas with extreme traffic intensity.
86%
Biologically active surface
850 t/m2
Load Capacity
- Height 63 mm
- Dimension 100cm/50cm
- Weight 11.2 kg
Technical parameters
Height
63 mm
Dimension
100cm/50cm
Color
Grey
Weight
11.2 kg
Outer wall thickness
15.5 mm
Inner wall thickness
12 mm
Number of geogrid clusters
50
Cluster dimensions
82 mm/82 mm
Number of pieces per m2
2
Weight per 1m2
22.4 kg
Material
PP/PE
Raw Material
FULL Recycling
Dimensional stability
± 3%
Compressive strength, minimum
850 t/m2
Permissible axle load, minimum
>450kN/axle
Biologically active surface
85%
Runoff coefficient
0,11-0,20
Application for fire access roads
YES
Product intended for
General Information
The HYDROGRAVEL PRO geogrid is constructed from very thick and reinforced walls, which create a rigid load-bearing structure with high stability.
Individual geogrid clusters can be filled with mineral aggregate or a layer of fertile soil intended for grass seeding, allowing for a stable and biologically active surface.

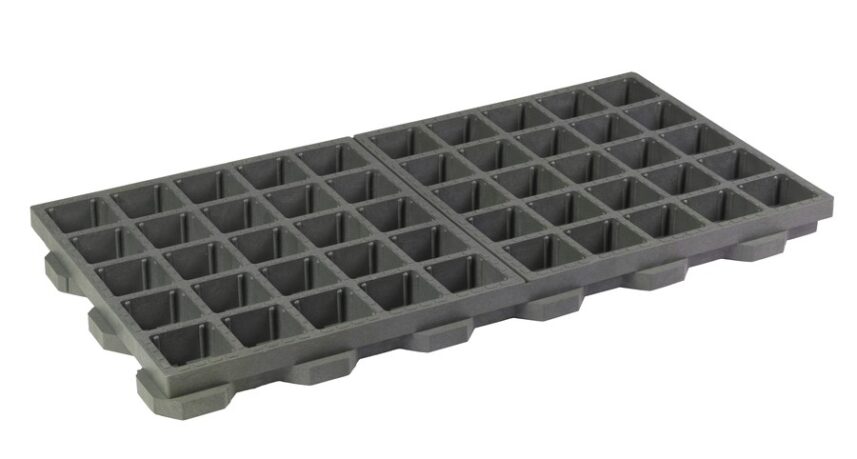

Modules measuring 100 cm x 50 cm allow for quick and efficient installation with a limited number of connections, which directly translates into better stabilization of the entire subgrade.

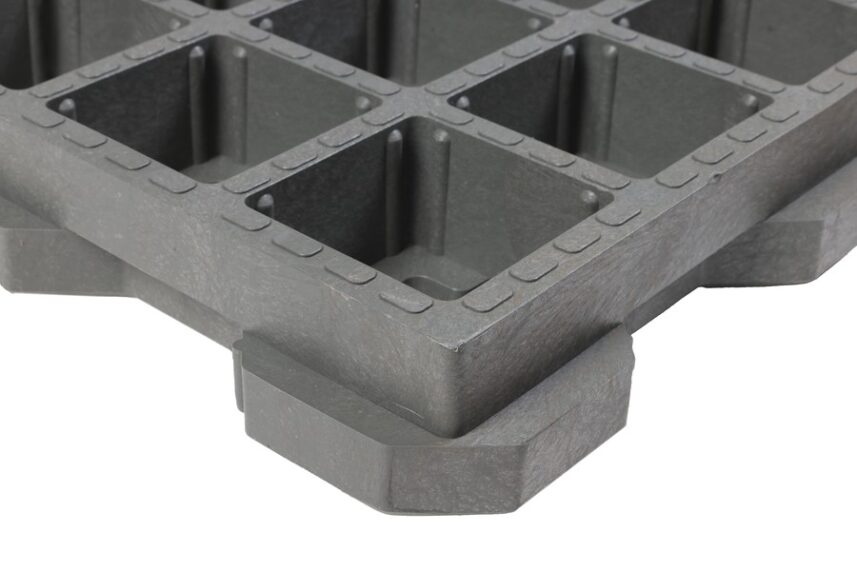

The panels are joined using a specially designed interlocking system, creating a uniform surface resistant to pressure and mechanical deformation under intensive use.
Thanks to its construction, the product is widely used in industrial construction, road infrastructure, and logistics areas with high traffic intensity.
This solution is effective for constructing parking lots for heavy transport, transshipment areas, and driveways exposed to extreme loads.
Such a surface construction completely eliminates the problem of unstable ground, while maintaining natural water retention and an aesthetic appearance of the area.
Product Packaging
- Pallet size 100cm/100cm
- Pallet height 2.1m
- Pallet weight 760 kg
- Number of pieces per pallet 66
- Number of m2 per pallet 33
- Special packaging Possibility of special packaging up to a maximum pallet height of 2.6m
Documents and Certificates
Technical Data Sheet
Download
National Declaration of Performance
Download
EPD Certificate
Download
REACH Declaration
Installation Instructions for stone infill
Installation Instructions for grass seeding
PRODUCT GALLERY
PORTFOLIO OF PROJECTS
-
Parking LotsCar Dealership in Toruń
ParkingToruń Car Dealership: 7,000 m² of ground stabilization with N40 PLUS grid, full load-bearing capacity and water drainage for display areas. -
Parking LotsApartments in Rogowo
ParkingRogowo Apartments: 3,200 m² of durable surface with N50 grids, complete water drainage and seaside aesthetics. -
Parking LotsOpole Interchange Hub
ParkingOpole Interchange Hub: 6,000 m² of stable parking spaces, full load-bearing capacity, and natural water drainage. -
Parking LotsPaddocks in Schrobenhausen, Germany
ParkingPaddocks in Schrobenhausen: N40 grid ensures a stable, mud-free surface, rapid drainage, and full load-bearing capacity. -
Parking LotsParking and Driveways – Hotel in Łeba
ParkingParking in Łeba: reinforcement of 4,000 m² surface area, full load-bearing capacity for vehicles and water drainage in a coastal climate. -
ConstructionResidential Parking in Łeba
Access Roads, ParkingResidential Parking Project in Łeba using Ekokrata N40 -
ConstructionGreen Roof Krakow
Access Roads, ParkingGreen roof in Krakow: Natan Plast grid stabilizes rolled turf on a sloped roof, preventing its slippage. -
Parking LotsKrakow Sports Center
Access Roads, ParkingParking in Krakow: Natan Plast geogrid at sports facilities ensuring load-bearing capacity, drainage, and a green surface. -
DrivewaysKiełczów Residential Driveways
Access Roads, ParkingAesthetic driveways in Kielce: durable ground stabilization, rapid water drainage, and preservation of biologically active surface. -
DrivewaysCar Showroom Kielce
Access Roads, ParkingProfessional car display in Kielce: durable ground reinforcement, mud elimination, and full load capacity for vehicles. -
DrivewaysDriveway Construction in Greece
Access Roads, ParkingGreen parking in Greece: stable grass surface, high-temperature resistance, and natural drainage. -
ConstructionSolmarina Parking Lots in Gdańsk
Access Roads, ParkingSolmarina Parking Lots – modern seaside parking facilities: 7,000 m² surface reinforcement, full load-bearing capacity, and permeable surface
DISCOVER OUR PRODUCTS
-
GARDEN EDGING ECO 45
-
ECO 55 GARDEN EDGING
-
ECO 58 GARDEN EDGING
-
ECO 78 GARDEN EDGING
-
MULTIBORD GARDEN EDGING
-
MULTIBORD SET GARDEN EDGING
-
OPTIBORD GARDEN EDGING
-
TERRABORD GARDEN EDGING
-
GARDEN EDGING SMART BORDER 40MM BLACK
-
HYDROGRAVEL PRO GREY
-

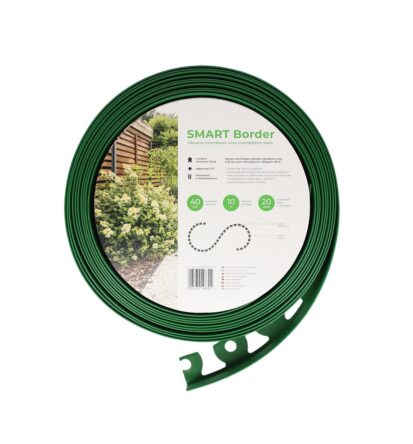

SMART BORDER 40MM GREEN GARDEN EDGING
-
