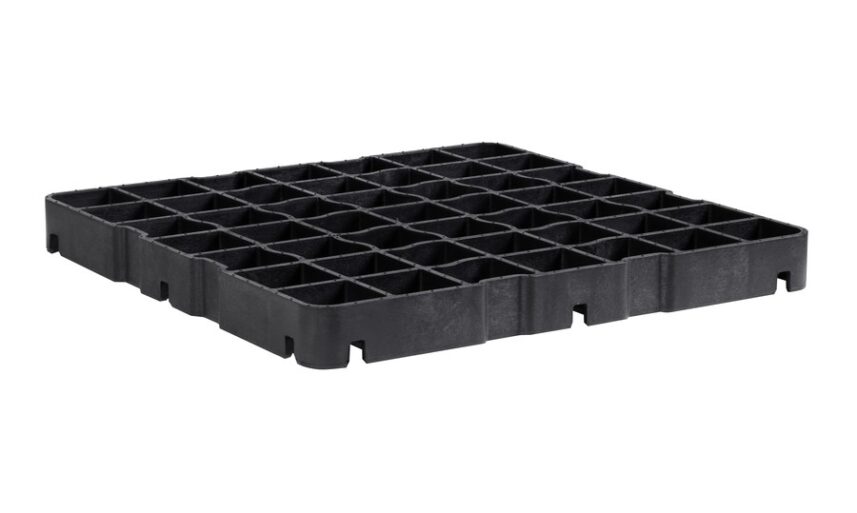

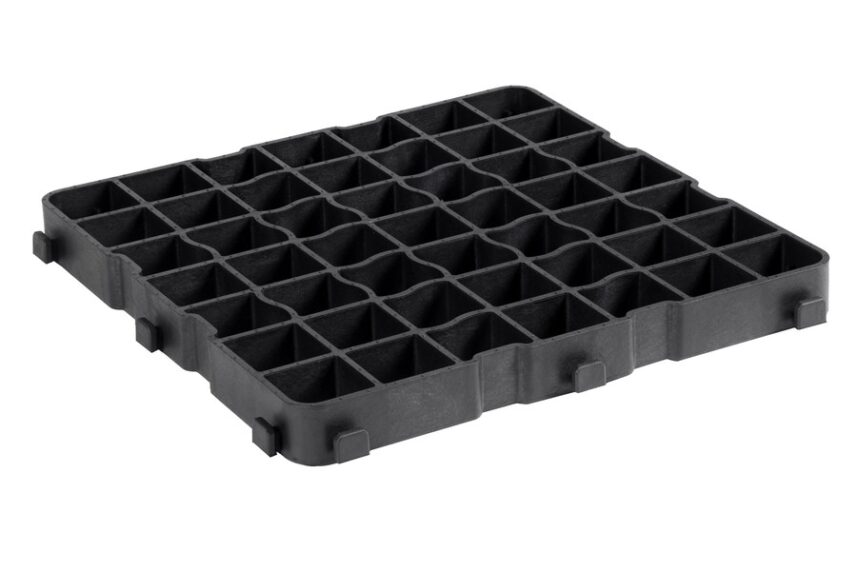

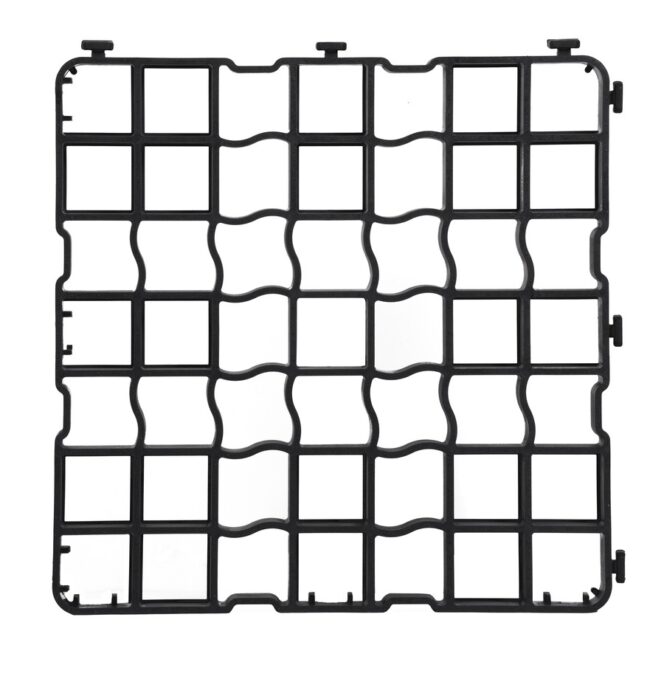

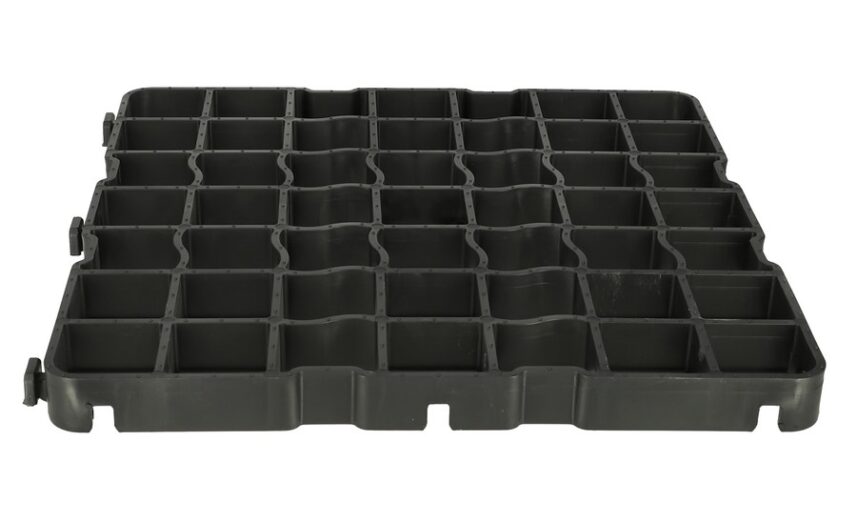

ECOGRID N50 PRO
Professional application
Ecogrid from the professional PRO series, designed for industrial applications on parking lots, roads, and driveways, dedicated to demanding areas. Resistant to heavy loads and intensive use.
86%
Biologically active surface
650 t/m²
Load Capacity
- Height 50 mm
- Dimension 50cm/50cm
- Color Black
- Weight 2.3 kg
Technical parameters
Height
50mm
Dimension
50cm/50cm
Color
Black
Weight
2.3 kg
Outer wall thickness
6 mm
Inner wall thickness
6 mm
Number of geogrid clusters
49
Cluster dimensions
64 mm/64 mm
Number of pieces per m2
4
Weight per 1m2
9.2 kg
Material
PP/PE
Raw Material
100% Recycled
Dimensional stability
± 3%
Compressive strength, minimum
650 t/m²
Permissible axle load, minimum
>380kN/axle
Biologically active surface
86%
Runoff coefficient
0,11-0,20
Application for fire access roads
YES
Product intended for
General Information
Ecogrid N50 PRO is constructed from a regular arrangement of cells forming a rigid framework that stabilizes the substrate, characterized by thick walls with enhanced resistance.
Individual ecogrid clusters can be filled with mineral aggregate or a layer of fertile soil intended for grass seeding, allowing for the creation of a stable and biologically active green surface.
Modules connect using built-in hooks and slots, which when snapped together form a uniform, integrated plane resistant to heavy mechanical loads.
Thanks to its reinforced construction, the product is designed for professional applications, such as the construction of fire access roads, maneuvering areas, and parking lots for heavy vehicles.
This solution performs well wherever maximum durability is required while maintaining natural water retention and protection against rutting.
The system is fully compatible with NATAN PLAST plastic parking markers, enabling precise designation of parking spaces and traffic lanes.
Product Packaging
- Pallet size 120cm/100cm
- Pallet height 2.1m
- Pallet weight 460 kg
- Number of pieces per pallet 192
- Number of m2 per pallet 48
- Special packaging Possibility of special packaging up to a maximum pallet height of 2.6m
Documents and Certificates
Technical Data Sheet
Download
National Declaration of Performance
Download
EPD Certificate
Download
REACH Declaration
Installation Instructions for stone infill
Installation Instructions for grass seeding
