HYDROGRAVEL GREY

Professional application

A geogrid dedicated to the most demanding applications in industrial construction, road infrastructure, and areas with extreme traffic intensity.
  • Height 63 mm
  • Dimension 40cm/80cm
  • Color Grey
  • Weight 6.5 kg
Technical Data Sheet

Technical parameters

Height 63 mm
Dimension 40cm/80cm
Weight 6.5 kg
Color Grey
Outer wall thickness 12 mm
Inner wall thickness 9 mm
Number of geogrid clusters 50
Cluster dimensions 67 mm/67 mm
Number of pieces per m2 3,1
Weight per 1m2 20.1 kg
Material PP/PE
Raw Material FULL Recycling
Dimensional stability ± 3%
Compressive strength, minimum 850 t/m2
Permissible axle load, minimum >450kN/axle
Biologically active surface 86%
Runoff coefficient 0,11-0,20
Application for fire access roads YES

Product intended for

Parking lots
Road shoulders
Internal and access roads
Roads and maneuvering areas
Infrastructure surfaces
Warehouse and industrial surfaces
Road shoulders
Fire access roads
Airports and landing strips
Paddocks and animal enclosures

General Information

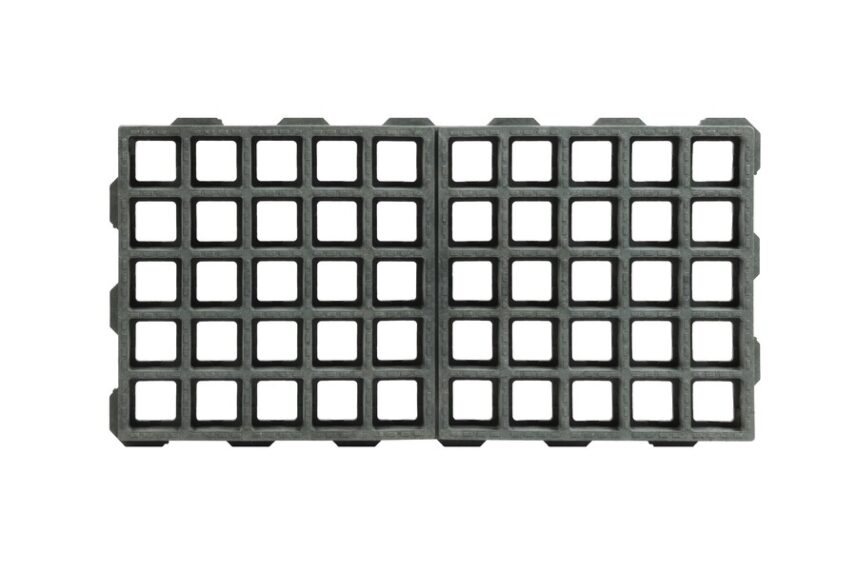

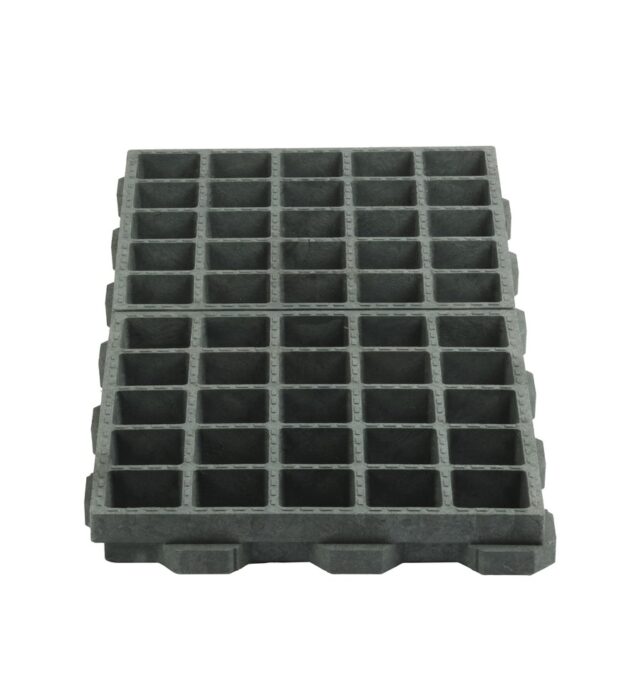

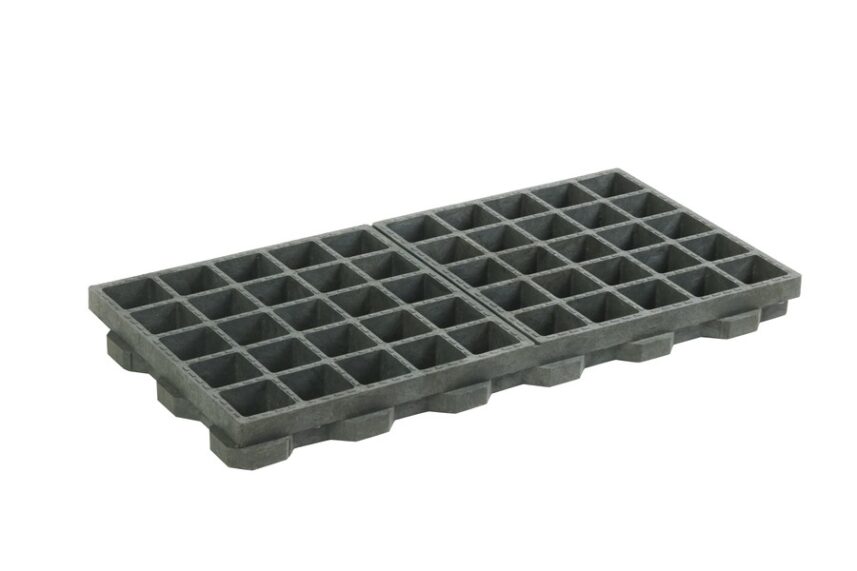

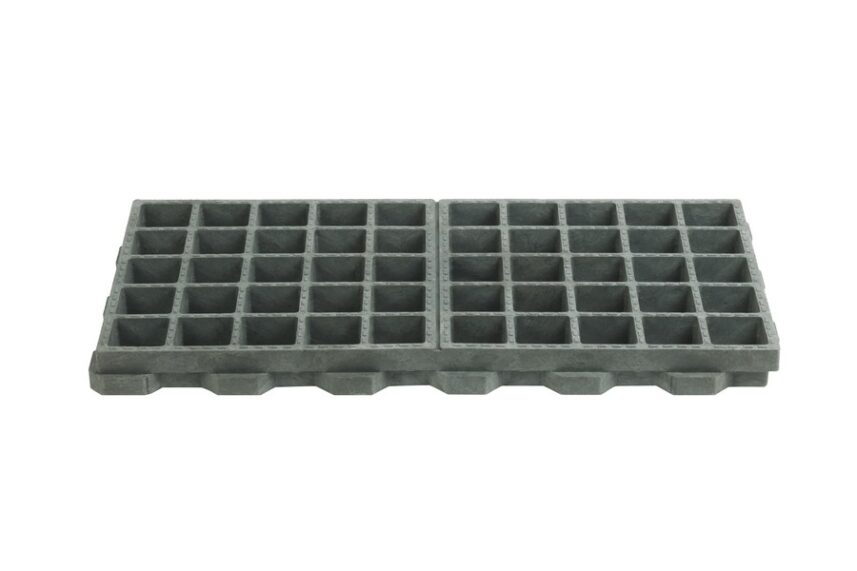

The HYDROGRAVEL geogrid is constructed from very thick and reinforced walls, which create a rigid, load-bearing structure with high stability.

Individual geogrid clusters can be filled with mineral aggregate or a layer of fertile soil intended for grass seeding, allowing for a stable and biologically active surface.

Modules measuring 80 cm x 40 cm allow for quick and efficient installation with a limited number of connections, which directly translates into better stabilization of the entire subgrade.

The panels are joined using a specially designed interlocking system, creating a uniform surface resistant to pressure and mechanical deformation under intensive use.

Thanks to its construction, the product is widely used in industrial construction, road infrastructure, and logistics areas with high traffic intensity.

This solution is effective for constructing parking lots for heavy transport, transshipment areas, and driveways exposed to extreme loads.

Such a surface construction completely eliminates the problem of unstable ground, while maintaining natural water retention and an aesthetic appearance of the area.

Product Packaging

  • Pallet size 120cm/100cm
  • Pallet height 2.1m
  • Pallet weight 600 kg
  • Number of pieces per pallet 90
  • Number of m2 per pallet 29
  • Special packaging Possibility of special packaging up to a maximum pallet height of 2.6m

Documents and Certificates

Technical Data Sheet

Download

National Declaration of Performance

Download

EPD Certificate

Download

REACH Declaration

Installation Instructions for stone infill

Installation Instructions for grass seeding

HYDROGRAVEL GREY

Optimized Module Format

The geogrid features an enlarged panel format of 80 cm x 40 cm, enabling quick installation.

High Load Capacity

The special design with a reinforced wall cross-section is intended for stabilizing surfaces under regular traffic of passenger and heavy vehicles.

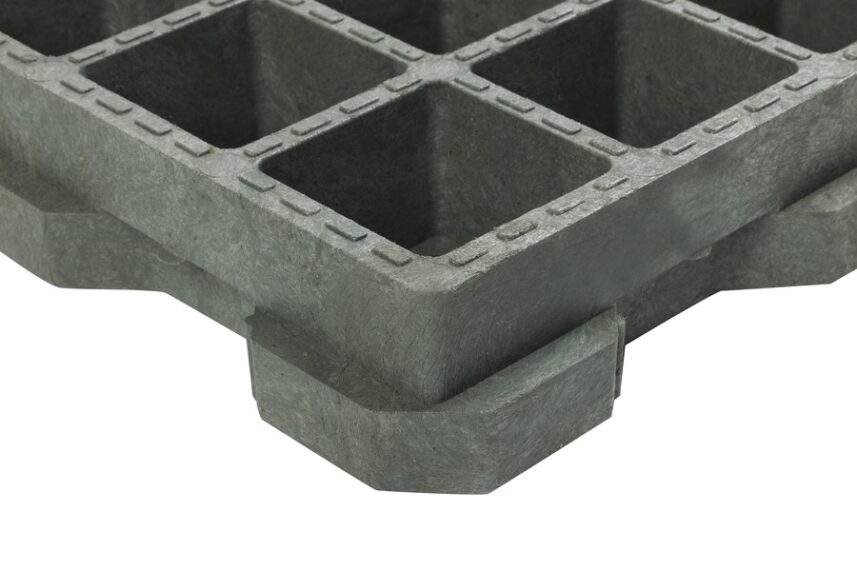

Integrated interlocking system

Precise connections guarantee a uniform and strong surface, which serves as a professional alternative to concrete and asphalt surfaces.

Professional Application

The product is used in industrial parking lots, maneuvering areas, and urban spaces requiring durable and reliable ground stabilization.

Natural Stormwater Retention

The geogrid clusters ensure free permeability, allowing for rapid water drainage into the subgrade and preventing water stagnation.

Protection Against Mechanical Deformation

The module structure is designed to effectively prevent rutting and ground settlement in areas of intensive use.
