ECOGRID N40
Standard application
Ecogrid for use in parking lots, roads, and driveways, designed primarily for light loads. Optimal wall height and a precise connection system ensure rapid soil stabilization and effective water drainage to the load-bearing substrate layers
90%
Biologically active surface
250 t/m2
Load Capacity
- Height 40 mm
- Dimension 50cm/50cm
- Color Black
- Weight 1.2 kg
Technical parameters
Height
40 mm
Dimension
50cm/50cm
Color
Black
Weight
1.2 kg
Outer wall thickness
4.5 mm
Inner wall thickness
3 mm
Number of geogrid clusters
49
Cluster dimensions
67 mm/67 mm
Number of pieces per m2
4
Weight per 1m2
4.8 kg
Material
PP/PE
Raw Material
100% Recycled
Dimensional stability
± 3%
Compressive strength, minimum
250 t/m2
Permissible axle load, minimum
>170kN/axle
Biologically active surface
90%
Runoff coefficient
0,11-0,20
Application for fire access roads
YES
Product intended for
General Information

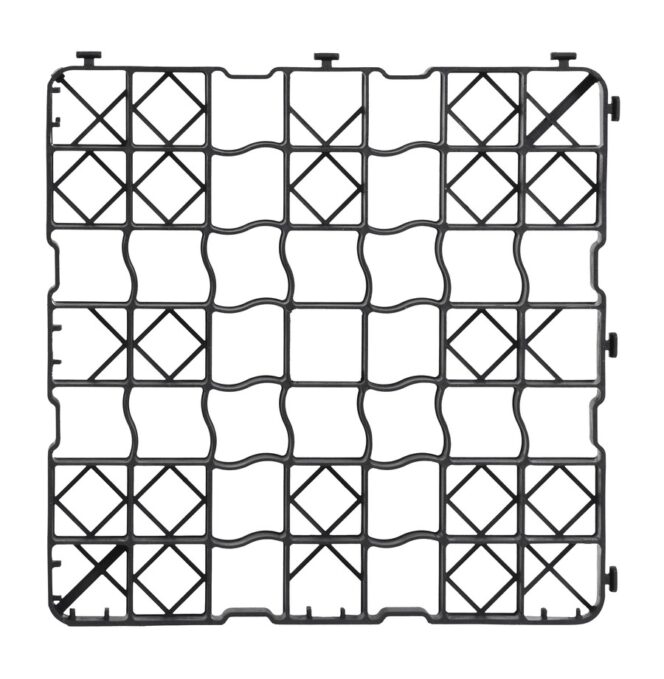

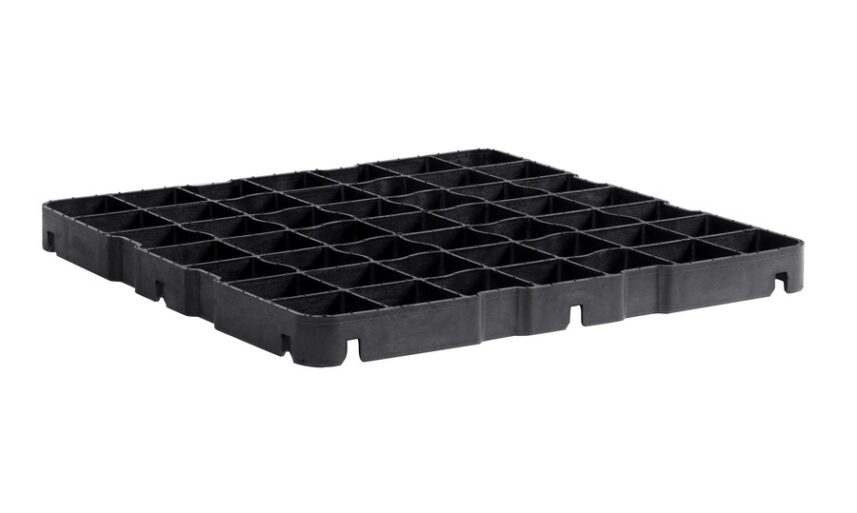

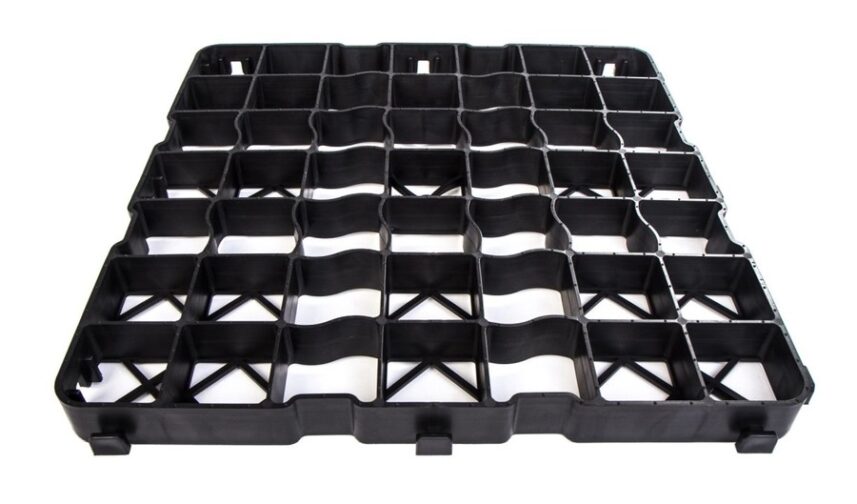

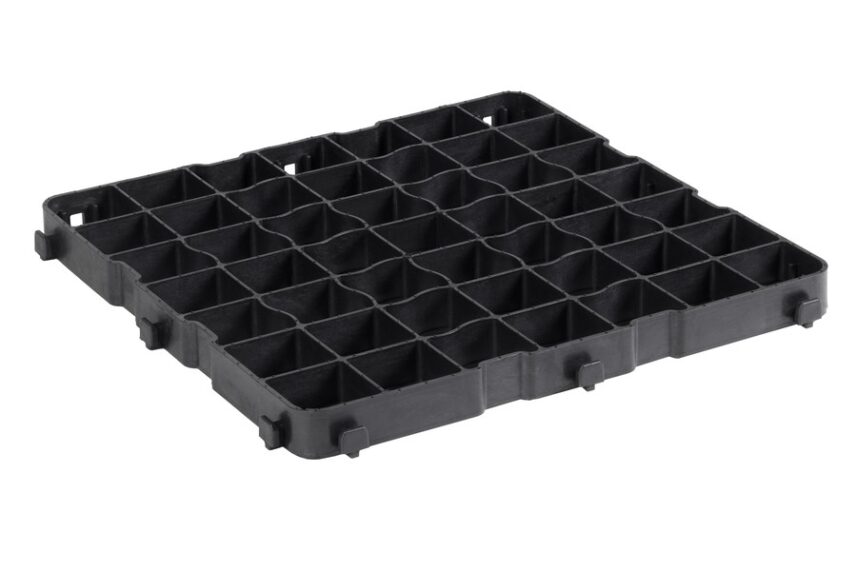

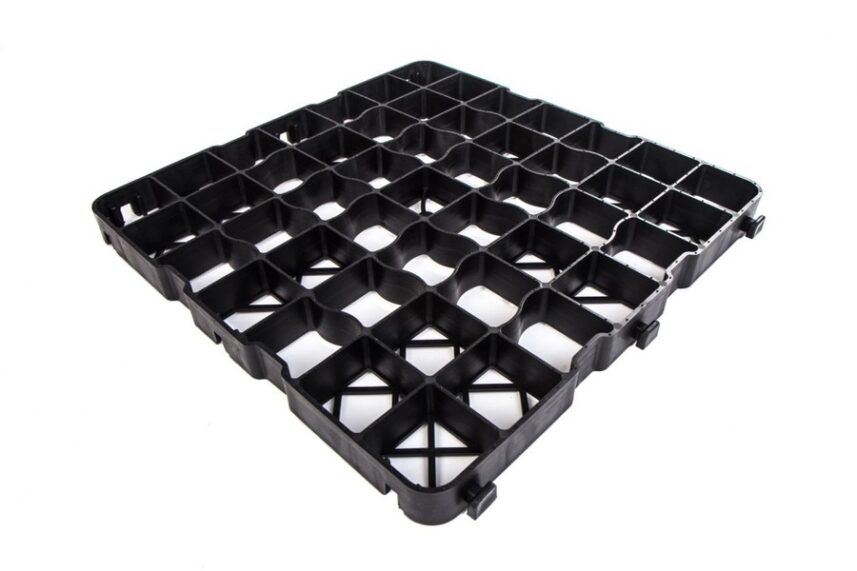

Ecogrid N40 is designed for stabilizing road and parking lot surfaces while maintaining a biologically active surface. It features a modular, load-bearing structure composed of regular, square cells connected at nodes, forming a stable grid with high load resistance.

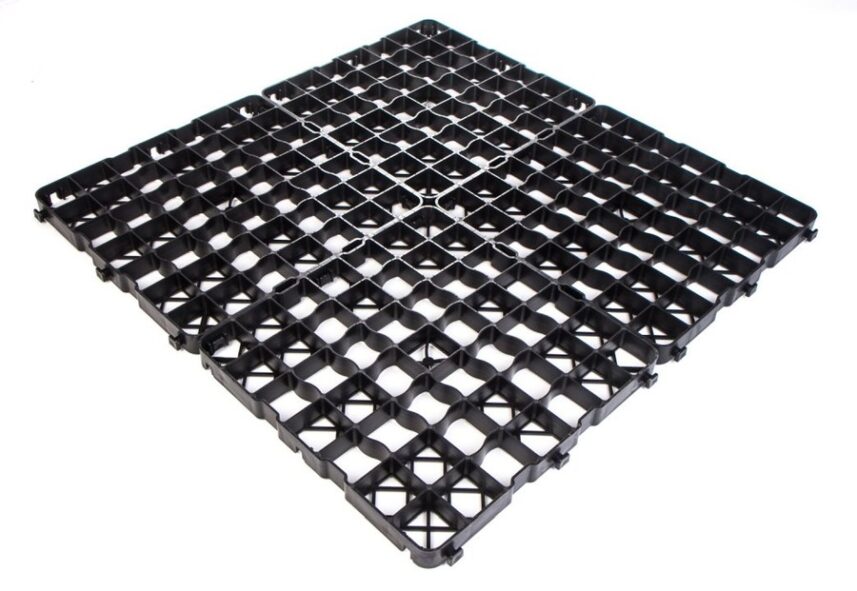

Panel connection is achieved on the side walls through a system of hooks and slots that snap into the sockets of adjacent modules, ensuring even and stable bonding of elements into a uniform surface.
The product is made from high-quality recycled material, resistant to weather conditions, low temperatures, and UV radiation, guaranteeing durability and stability of performance characteristics throughout the entire service life.
Ecogrids can be filled with mineral aggregate or a layer of fertile soil for grass seeding, creating a stable, biologically active green surface.
For separating traffic lanes and marking parking spaces, NATAN PLAST plastic parking markers are used, compatible with the ecogrid system.
Product Packaging
- Pallet size 120cm/100cm
- Pallet height 2.1 m
- Pallet weight 310kg
- Number of pieces per pallet 240
- Number of m2 per pallet 60
- Special packaging Possibility of special packaging up to a maximum pallet height of 2.6m
Documents and Certificates
Technical Data Sheet
Download
National Declaration of Performance
Download
EPD Certificate
Download
REACH Declaration
Installation Instructions for stone infill
Installation Instructions for grass seeding
